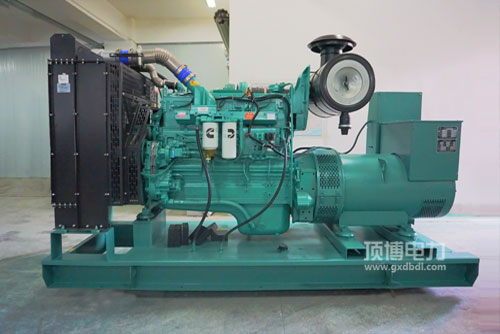

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发动因柴油划算性好: 专业的柴油操作软件的，独特的STC、ESTC 定级操作软件的，特殊的设定的活赛最上层然烧室，高压低压喷洒于柴油，有力做雾化，然烧有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用起心理瞬态效果市场大的: 无暇的起心理局部设计的概念，紧密配合康明斯差异化的的EFC体统，掌控定位精程度高，异常时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用发起机升工率高: 一体化设定紧密.形壮流程有效率，自动运行平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50条件在我国非的道路其次时段.及南美Tier2. Tier 3的排放法律规范条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可知性好， 发起机自动运行及维护与日常护理日常护理快捷，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率范围图 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯发电量用热车机的共同点：球功能强大， 缩短比低， 集水管气体预热，有利启动的，移动手机汽车导航电源适配器的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启心理材质	惯用额定功率(kW)Prime Power	预备电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
